Multi-purpose valve

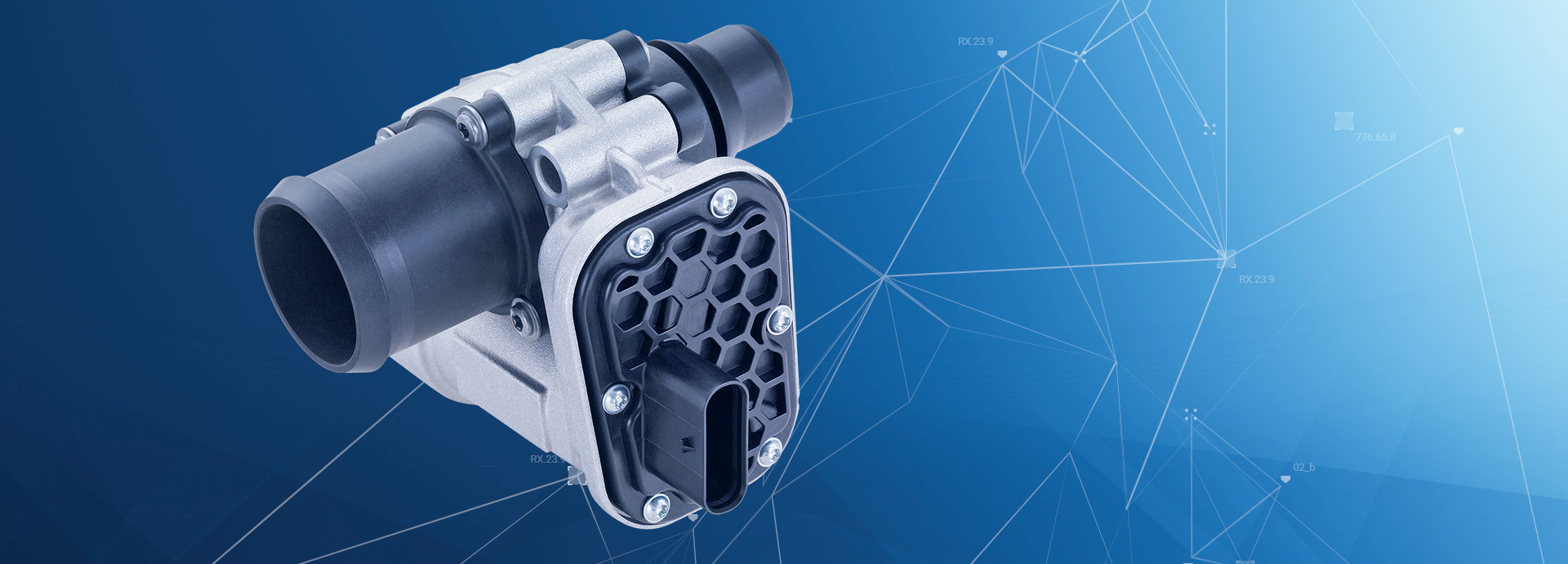

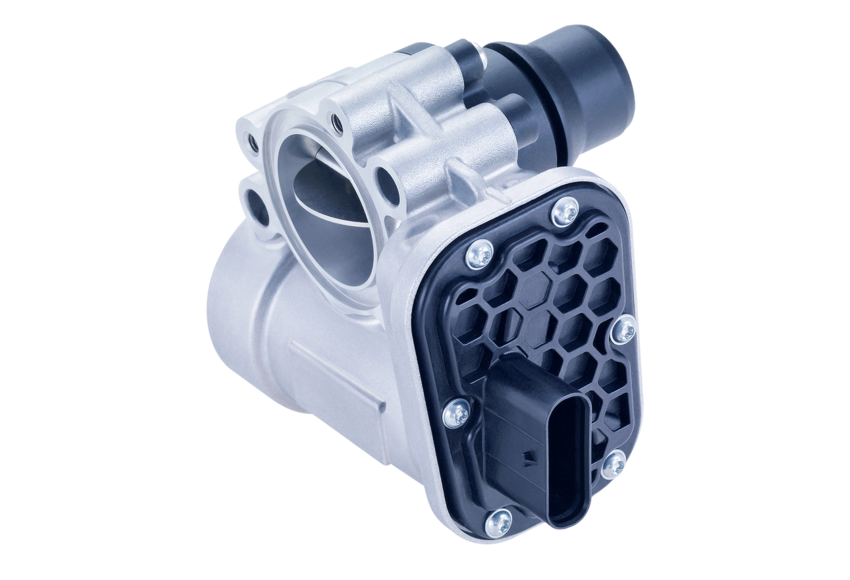

This compact and lightweight throttle control valve from Rheinmetall offers high resistance against aggressive fluids, ensuring reliable performance even in challenging environments.
With a rapid response time of less than 80 milliseconds and exceptional durability exceeding 10 million actuation cycles, this valve provides long-lasting efficiency. It is available with a bore size of 28 mm and meets both basic and high EMC level standards.
Weighing just 260 grams, it is engineered for applications where low weight and high performance are essential.
| Technical Data | |
|---|---|
| Operating voltage | 12/24 V |
| Current consumption | (20 °C) 0,5 Amp |
| Temperature range | -40 °C ... +150 °C |
| Pressure range | 20 – 350 kPa (abs) |
| Leakage | < 1 kg/h @ 60 kPa dp |
