Environmental Simulation / Laboratories

Transport Simulation

Our jarring test equipment offers possibilities for tempered transport and shock simulations in compliance with all international standards. All excitation spectra can be carried out in a secure environment.

2576
  • Test specimen: up to 1,000kg
  • Force vector: up to 120kN
  • Test temperature: from –54°C to +80°C
  • Oscillation: up to 3 inch (76mm)
  • Dimension max.: 140 x 140 x 100 (L xWx H)
  • Vertical and horizontal operation (table with sliding surface)

Examples of transport simulations

2572

Loose Cargo-test in compliance with MIL-STD, DEF-STAN, ITOP and AECTP

2574

Vibration test of explosives

2575

Vibration testing of heavy equipment up to 1,000kg

X-Ray Laboratory

2573
Our modern X-ray linear accelerator can test for internal defaults via digital radiography (DR) and/or computer tomography (CT).

X-ray Linear Accelerator
Cutoff energy 3 – 6MeV
Dose rate up to 8 Gray/min *m
CT-Layer distance ≥0,4mm
Focal spot size 2mm
Rotation projections 1,440 pictures on 360°

Examples for various x-ray tests

2586

2587

2588

2585

Test Objects
Length or height of test objects up to 900mm
Width or diameter up to 260mm
Weight of test object up to 50kg
Radiographic Performance
Steel     30 to 200mm
Copper     25 to 175mm
Titanium     50 to 400mm
Aluminium     90 to 600mm
Materials Laboratory
2577

The highly experienced collaborators of our well-equipped and modern materials laboratory can take up many challenges and will successfully accomplish complex tasks.

We can offer our competencies and support clients in the development and optimisation of metallic materials, determination of their properties and damage examination. Other our long standing experience in the field, we employ the following examination methods:



  • Metallography
  • Mechanical-technological materials tests
  • Optical and scanning electron microscopy (ESEM/EDS)
  • Various analytical procedures
  • Non-destructive materials testing

Examples for examination methods

2578

Innovative techniques and modern processes

2579

Checking on an internal default using ultrasound

2580

Scanning electron microscopy of e.g. a fractured surface

2582

Hardness testing for to evaluate previous tempering or coating

2584

Determination of elastic or plastic material properties by means of incremental strain gauge during tensile testing

Contact

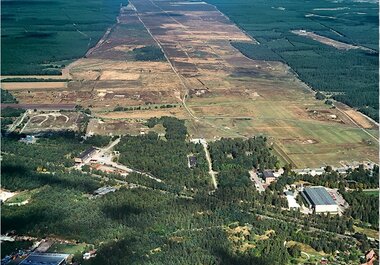

Test Centre EZU
