Flexible use for any situation

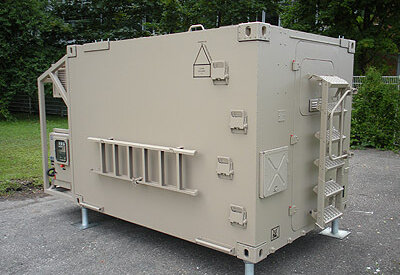

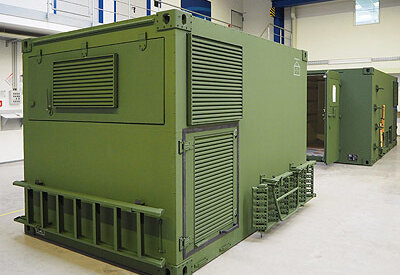

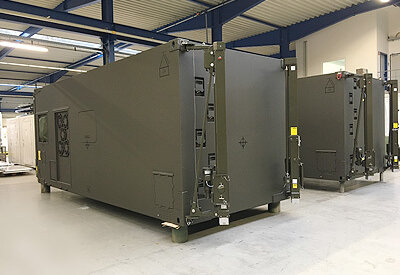

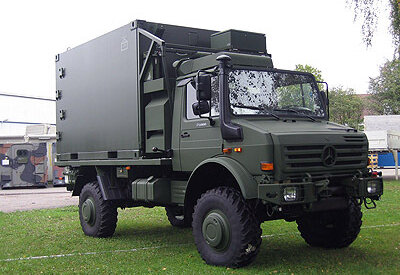

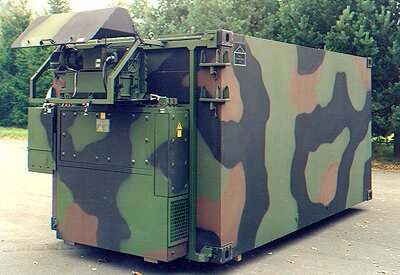

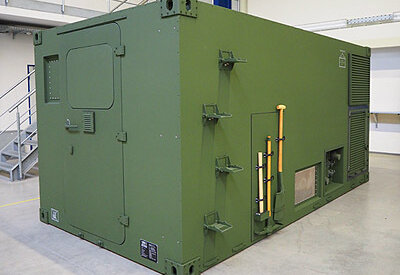

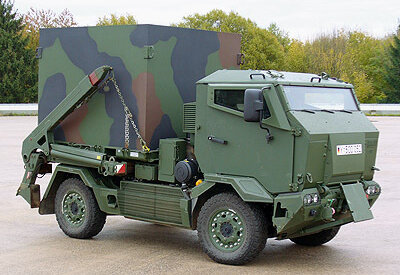

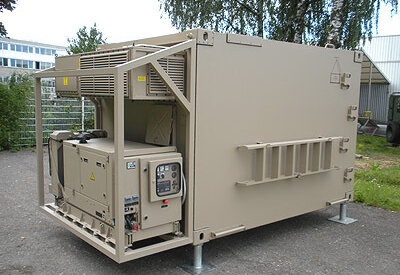

The aluminum shelter is so universally conceived that a multiplicity of application possibilities - e.g. in the communication and telecommunications range - are given. Ideally suited for mobile and stationary use, over 10,000 aluminum shelters have been delivered in recent years.
For the aluminum shelter, two design variants and various dimensions are available as basic versions:
- Type A: unshielded version
- Type B: with integrated RF shielding.
Type A is designed in such a way that the retrofitting of type B RF shielding is guaranteed.
The equipment with an integrated or adaptive ballistic protection is optionally possible.
In addition, the shelters can be equipped with a NBC protective ventilation system.
If the maintenance and care intervals are observed and the shelters are handled properly, they are designed for a service life of more than 20 years due to their construction and design.
In RMS standard or customer-specific design and equipment, aluminum shelters can be used flexibly, e.g. as:
- Telecommunication cabin
- Command post
- Ground control station
- Relay station
- Weather station
- Server station

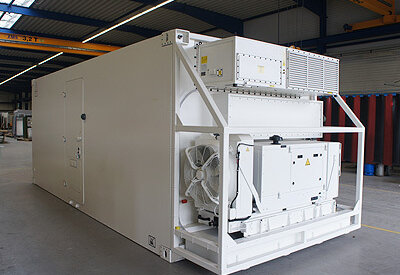

The customized equipment includes individual system integration (EDP, rack installation, communication technology, etc.) as well as integrated power supply, lighting and air conditioning.
Standardized dimensions (external dimensions via corner fittings)
|ACE I (FM 1)||2,990 mm||2,050 mm||1,825 mm|
|ACE II (FM 2)||4,250 mm||2,200 mm||2,075 mm|
|ACE III||5,000 mm||2,200 mm||2,075 mm|
|NATO I + II||3,810 mm||2,080 mm||2,110 mm|
|10'||2,991 mm||2,438 mm||2,438 mm|
|15'||4,541 mm||2,438 mm||2,438 mm|
|20'||6.058 mm||2.438 mm||2.438 mm|
Dead weight (depending on version): approx. 1,500 kg - 2,500 kg
