Coolant Pumps
Over a decade ago, we were the world’s first supplier to commence full-scale production of an electrical coolant pump for main engine cooling – and we haven’t stopped innovating since. Our extensive portfolio offers solutions ranging from the cooling of auxiliary circuits to main cooling of internal combustion engines, batteries, e-motors, and fuel cell stacks. Stationary battery systems, fast charging stations, data centers, and 5G network towers all require thermal management.
Our products make it easy to attain even the most ambitious targets. It doesn’t matter if you use a traditional water-glycol mixture or advanced dielectric fluid, or if you use a low- or high-voltage network – we have the right pump for you!
Our mechanical pump portfolio consists of conventional direct drive pumps that offer a reliable and compact package as well as fully variable pumps, controlled by a solenoid valve for the ultimate combination of reliability and efficiency. All our products are suitable for passenger car and commercial vehicle applications.

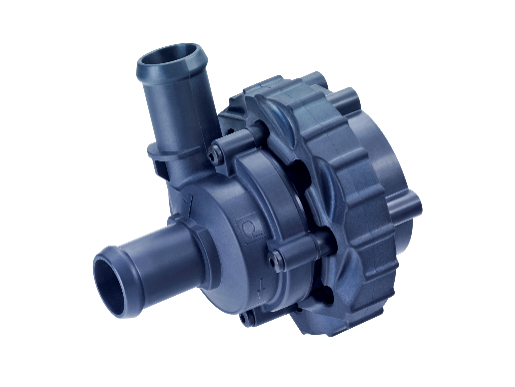

Electrical auxiliary coolant pumps for thermal management of:
- EGR cooler, turbocharger, charge air cooler
- Engine and transmission oil
- Thermal management modules
- Battery, power electronics and electric motor
HIGHLIGHTS
- Scalable hydraulic performance , extensive diagnostic functions and extended lifetime over 40,000 hours
- 1 or 3-phase BLDC motor with low noise emission
- High efficiency reduces power consumption and load on the vehicles electrical system
- Modular interface- / mounting concept
| Small Electrical Coolant Pumps: 12V | |||||
|---|---|---|---|---|---|
| Technical Data | WUP 3evo | WUP 25 | WUP 40 | WUP 60 | WUP 80 |
| Voltage | 12 V | 12 V | 12 V | 12 V | 12 V |
| Flow | 8 (l/min) | 15 (l/min) | 15 (l/min) | 20 (l/min) | 20 (l/min) |
| Pressure | 0,2 (bar) | 0,3 (bar) | 0,5 (bar) | 0,6 (bar) | 0,65 (bar) |
| Current | < 1,6 (A) | < 2,2 (A) | < 3,4 (A) | < 5,1 (A) | < 7,5 (A) |
| Communication | PWM/LIN | PWM/LIN | PWM/LIN | PWM/LIN | PWM/LIN |
| Medium |
Ethylene Glycol Water 50:50 mixture |
Ethylene Glycol Water 50:50 mixture |
Ethylene Glycol Water 50:50 mixture |
Ethylene Glycol Water 50:50 mixture |
Ethylene Glycol Water 50:50 mixture |
| TMEDIUM | -40 °C up to +125 °C | -40 °C up to +125 °C | -40 °C up to +125°C | -40 °C up to +80°C | -40 °C up to +90°C |
| Weight |
230 (g) |
345 (g) |
345 (g) | 345 (g) |
<370 (g) |
| Small Electrical Coolant Pumps: 24V | |||
|---|---|---|---|
| Technical Data | WUP 25 | WUP 40 | WUP 60 |
| Voltage | 24 V | 24 V | 24 V |
| Flow | 15 (l/min) | 15 (l/min) | 20 (l/min) |
| Pressure | 0,3 (bar) | 0,5 (bar) | 0,6 (bar) |
| Current | < 0,9 (A) | < 1,6 (A) | < 2,7 (A) |
| Communication | PWM/LIN | PWM/LIN | PWM/LIN |
| Medium | Ethylene Glycol Water 50:50 mixture | Ethylene Glycol Water 50:50 mixture | Ethylene Glycol Water 50:50 mixture |
| TMEDIUM | -40 °C up to +130 °C | -40 °C up to +125°C | -40 °C up to +120°C |
| Weight |
345 (g) |
345 (g) | 345 (g) |

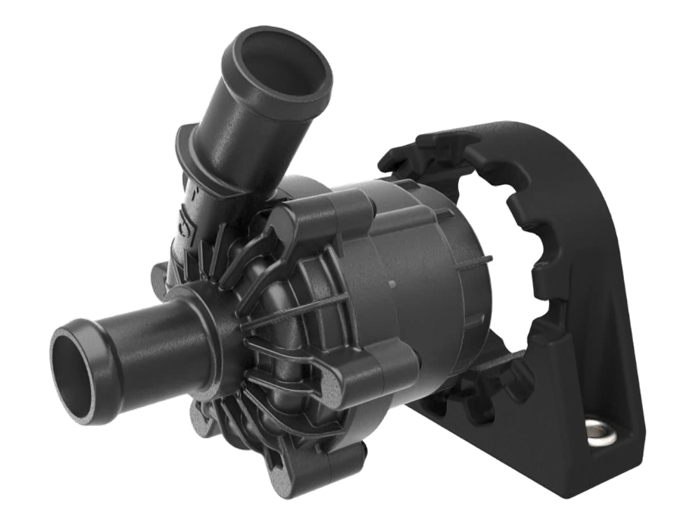

12V Modular Electrical coolant pump for thermal management of:
- High voltage batteries
- Electrical traction motors
- Power Electronics (DC-DC Converter, Inverter, Onboard Charger)
- Low temperature & high temperature circuits in ICE and Hybrid application
HIGHLIGHTS
- Over 40,000 hours Lifetime
- Extremely low NVH ideally suited for E-Mobility
- Support of future Diagnostic requirements
- Modular design easily adoptable for any vehicle application
- Interface ready for ITM mounting
| Technical Data | MEP 100 | MEP 150 | MEP 250 |
|---|---|---|---|
| Voltage | 12 V | 12 V | 12 V |
| Flow | 20 (l/min) | 35 (l/min) | 45 (l/min) |
| Pressure | 1,2 (bar) | 1,5 (bar) | 1,6 (bar) |
| Current | < 8,0 (A) | < 16,0 (A) | < 21,0 (A) |
| Communication | LIN 2,2 | LIN 2,2 | LIN 2,2 |
| Medium | Ethylenglykol-Wasser 50:50 Mischung | Ethylenglykol-Wasser 50:50 Mischung | Ethylenglykol-Wasser 50:50 Mischung |
| TMEDIUM | -40 °C bis +90 °C | -40 °C bis +90 °C | -40 °C bis +90 °C |
|
(Ø x height) |
102x107 (mm) |
102x113 (mm) |
102x118 (mm) |

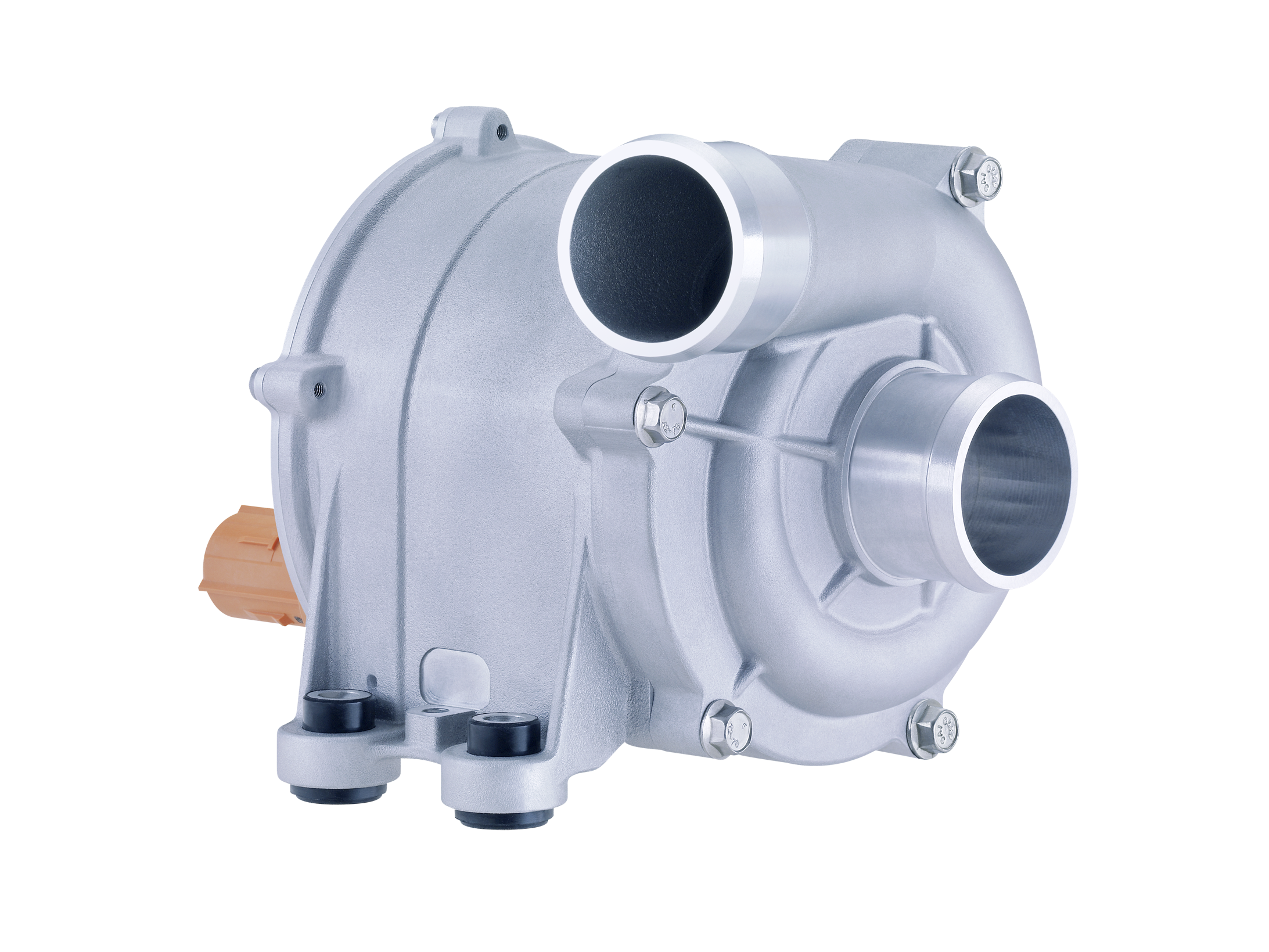

Main Coolant pump for thermal management of:
- Latest generation Diesel and Gasoline engines
- Battery packs, power electronics and el. motors
- Fuel Cell stacks
HIGHLIGHTS
- Zero flow during Start / Reduced heat up time
- Post-Run Function
- Full Diagnostics Capability
- Lifetime of up to 70,000 hours depending on duty cycle and temperature profile
| Technische Daten | CWA 400+ | CWA 2000 |
|---|---|---|
| Voltage | 12 V | 850 V |
| Flow | 150 (l/min) | 250 (l/min) |
| Pressure | 0,8 (bar) | 2,5 (bar) |
| Current | < 28,0 (A) | < 3,0 (A) |
| Communication | LIN 2,2 | CAN |
| Medium | Ethylenglykol-Wasser 50:50 | Brennstoffzellen-Kühlung |
| TMEDIUM | -40 °C bis +130°C | max. 90 °C |
| (Ø x height) | 87x170 (mm) | 131x190 (mm) |
Highlights
- Integrated electro-hydraulic actuation system < 10 W electric power consumption
- Fully fail safe – in full flow position
- Up to 65% less absorbed power consumption compared to mechanical coolant pumps
- Continuously variable from no flow to full flow
- 2 kg lighter than other variable concepts
- High cost-efficiency
| Technical Data | |
|---|---|
| Flow rate | up tou 1.000 l/Min. |
| Pressure | up to 5,0 bar |
| Actuator type | Solenoid valve |
| Coolant temperature | -40 °C at+120 °C |
| Lifetime | 2.500.000 actuations |
