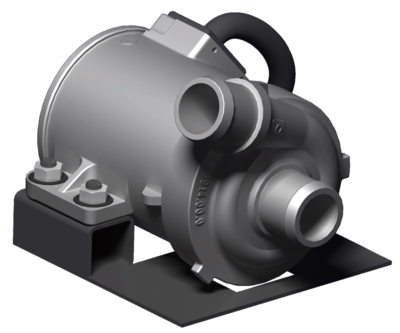

CWA 400+ 48 V
Main Electrical Coolant Pumps
Highlights
- Compact design for 4U In-Rack Coolant Distribution Unit (CDU), (height < 127 mm)
- High thermal robustness by internal cooling
- No need for active air cooling
- Diagnostic implemented: leakage detection, overtemperature, overcurrent, overvoltage, tachometer feedback signal etc.
- Long-lifetime > 80.000 h without leakage (reliable wet-runner design)
- Free selectable electrical connector due to flexible cable harness solution
| Technical data | CWA 400+ 48 V |
|---|---|
| Operating voltage | 48 V |
| Flow | 73 l/Min. |
| Pressure | 1.8 bar |
| Coolant temperature | -40 °C bis +80 °C |
| Current consumption | < 11 A bei 48 V |
