Lightbringer: Tactical Weapon Lamp

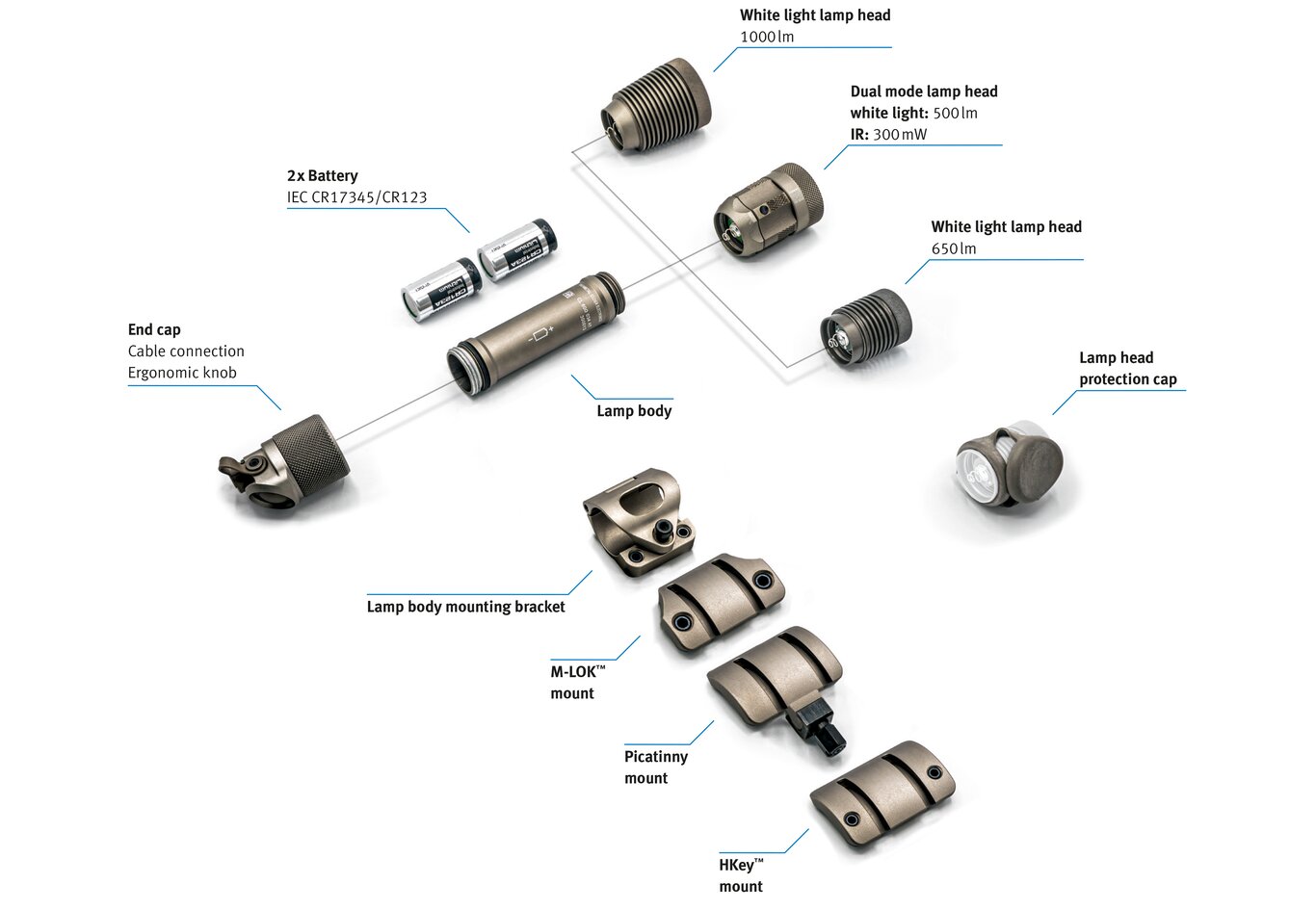

The basic concept behind Rheinmetall's TL-MissionLight tactical weapon lamp is its modular design. This allows selectable configurations for each specific mission scenario - for example, by choosing the dual lamp head, which switches between 500 lm LED white light and 300 mW IR illumination by a simple rotary movement. Various mounting systems (Picatinny MIL-STD-1913/STANAG4694, Heckler & Koch HKey™, Magpul M-LOK™) and the freely selectable ergonomic end cap, optionally with cable connection, round off the TL-MissionLight. Combined control of Rheinmetall laser modules (e.g. LM-VTAL, LM-LowProfile) enables a Y-cable. Waterproof (IP68) and tested according to MIL-STD-810.
|Mounting height||35 mm|
|Mounting||Picatinny Rail (MIL-STD-1913/STANAG4694)
Heckler & Koch HKey™
|Weight incl. battery & mount||130 g|
|Waterproof (IP68), salt water resistance||30 m for 2 h|
Night combat capability with a single push of the button - the TL-MissionLight is one of the most rugged tactical weapon lights. On the submachine gun, assault rifle or as a handheld, Rheinmetall delivers uncompromising mission capability in all extreme conditions and low light conditions.
The software-controlled end cap of the TL-MissionLight allows various options and free choice of different operating concepts. For example, continuous light or strobe. Haptic feedback for use with gloves can be optionally set at the factory.
Standard LED white light lamp | 650 lm
The standard LED white light lamp head provides a luminous flux of up to 650 lm - for good and bright illumination of rooms or blinding of close targets. The specially designed surface has an especially good cooling performance to improve the thermal signature.
Standard LED white light lamp | 1000 lm
The largest and most powerful LED white light lamp head offers a luminous flux of up to 1000 lm - for strong and bright illumination of rooms or blinding of close targets. The specially designed surface has an especially good cooling performance to improve the thermal signature.
Dual mode LED/IR lamp head
The innovative compact dual mode LED/IR lamphead provides up to 500 lm of LED white light. With a simple turn of the module selector switch, the TL-MissionLight offers 300 mW IR mode, which provides illumination invisible to the naked eye - specifically designed for use with night vision goggles (NVG). Mode selection generates haptic feedback to the user, making it easy to operate in the dark before switching on.
|Standard LED white light lamp head|
|Max. Luminous flux||650 lm|
|High power LED white light lamp head|
|Max. Luminous flux||1000 lm|
|Dual mode LED/IR lamp head|
|Max. Luminous flux||500 lm|
|Max. IR Ausgangsleistung||300 mW|
|Max. IR Wellenlänge||940 nm|
|Battery||2x IEC CR17345 / CR 123|
|Battery life (depending on configuration)||1 h|
|Waterproof (IP68)||30 m für 2 h|
|Operating temperature||-32 °C bis 71 °C|
